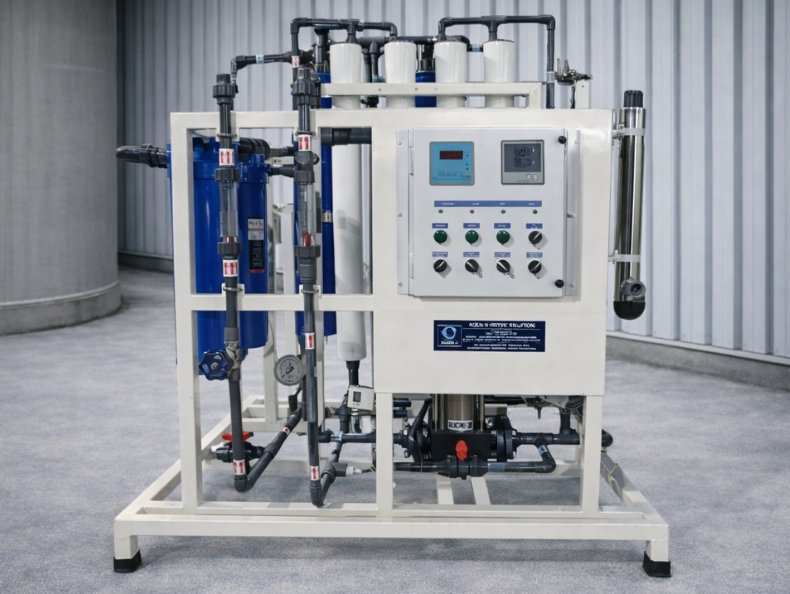

1000 LPH RO Plant with UV
The 1000 LPH RO + UV Plant is a high-performance water purification system designed for commercial and industrial applications that require a steady supply of safe, pure, and high-quality water. Built with a durable SS and MS structure, the system integrates advanced Reverse Osmosis technology with UV disinfection to efficiently remove dissolved salts, impurities, and harmful microorganisms.
Engineered for dependable performance and low maintenance, this system ensures continuous operation and long service life even in demanding operating conditions.
Key Features
- Capacity of 1000 liters per hour
- Robust SS and MS construction for enhanced durability
- High-efficiency RO membranes for superior TDS reduction
- Integrated UV system for effective microbial disinfection
- Multi-stage pre-filtration to protect RO membranes
- Skid-mounted compact design for easy installation
- Low operating and maintenance costs
- Consistent and reliable purified water output
Applications
- Commercial water purification systems
- Hospitals and healthcare facilities
- Laboratories and research centers
- Food & beverage processing units
- Pharmaceutical and chemical industries
- Hotels, restaurants, and institutions
- Industrial process and utility water treatment
PRODUCT DESCRIPTION
| PRODUCT DESCRIPTION | 1000 L/H RO PLANT | 1000 LPH SS 304 / 316 |
|---|---|---|
| RWP PUMP | 230 VOLT 50 Hz / 60 Hz | 230 VOLT 50 Hz / 60 Hz |
| SAND MEDIA FILTER |
VESSEL SIZE: 325/1350 MM – FRP MEDIA: Sand, Gravels, Silex |
VESSEL SIZE: 325/1350 MM – SS 304 (Top Mounted MPV) MEDIA: Sand, Gravels, Silex |
| CARBON FILTER |
VESSEL SIZE: 325/1350 MM MEDIA: 900 IV Coconut Based Carbon |
VESSEL SIZE: 325/1350 MM – SS 304 (Top Mounted MPV) MEDIA: Sand, Gravels, Silex |
| DOSING PUMP WITH TANK |
Dosing Rate @ 4 kg/cm² : 5 LPH Electrical: 230 V AC, 50 Hz |
Dosing Rate @ 4 kg/cm² : 5 LPH Electrical: 230 V AC, 50 Hz |
| MICRON CARTRIDGE FILTER | PP Housing – 4” × 20” DIA @ 5 Micron | SS 304 – 4” × 20” DIA @ 5 Micron |
| ELECTRIC PANEL | Auto – With MCB Relay Operated | Auto – With MCB Relay Operated |
| HPP PUMP | 415 Volt / 230 Volt – SS 304 | 415 Volt / 230 Volt – SS 304 |
| MEMBRANE | Japan / USA (Size 40” × 40”) | Japan / USA (Size 40” × 40”) |
| PRESSURE TUBE | 300 PSI – 40 × 40 | SS 304 – 300 PSI – 40” × 40” |
| SKID | Box Type MS – Powder Coated | Box Type SS 304 |
| PIPING & FITTING | UPVC | SS 304 / SS 316 |
| UV DISINFECTION | SS 304 – 254 NM, 160 J/m² | SS 304 – 254 NM, 160 J/m² |
| MULTI PORT VALVE | Top Mounted – 2 Nos | Top Mounted – 2 Nos |
