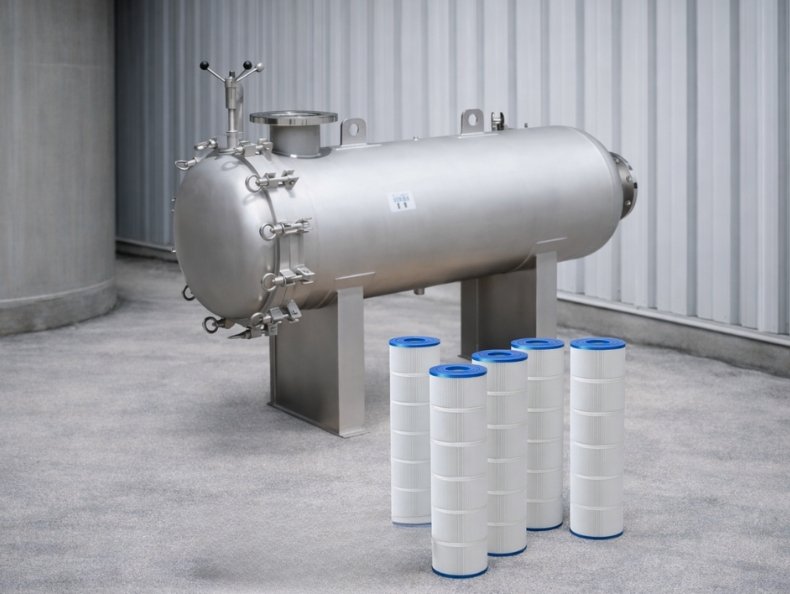

Horizontal Cartridge Filter Housing

Horizontal Cartridge Filter Housing is designed for applications requiring high flow rates with compact and cost-effective filtration solutions. It is suitable for high-flow cartridges, delivering better flow performance compared to traditional cartridge filter housings of the same size.

The housing offers an economical design due to smaller size requirements and is available in both horizontal and vertical configurations. Operator-friendly quick opening closure (QOC) options simplify handling, installation, and maintenance.

null

Proven performance in demanding environments

Reliable performance in harsh industrial environments.

null

Low operating and maintenance costs

Optimized for efficient operation with low maintenance and reduced costs.

null

Custom-built solutions as per application needs

Designed to meet specific application needs for optimal performance.

null

Trusted quality and consistent results

Built with high-quality materials for dependable and consistent performance.

Key Features

  • Suitable for high-flow cartridges for improved flow rates
  • Provides higher flow performance than traditional housings of the same size
  • Economical solution with compact size requirements
  • Available in both horizontal and vertical designs
  • Operator-friendly quick opening closure (QOC) option
  • Easy handling, installation, and maintenance

Applications

  • Processing chemicals
  • Petroleum derivatives
  • Coolants
  • Cutting oils
  • Cleaning fluids
  • Vegetable oils
  • Edible oils
  • Polymers
  • Paints and inks
  • Resins
  • Pharmaceuticals
  • Sugar syrup processing

Technical Data

ParameterDetails
No. of Cartridges Up to 25, more on request
Cartridges Length 40", 60"
Flow Rate Up to 1500 m³/hr, more on request
Cartridge Fitment Plug-in, Doe, Soe
Design Code Good Engineering Practice,
MOC ASME section VIII Division 1
Pressure Rating Carbon Steel, Mild Steel, Duplex 2205, SS 304/304L, SS 316/316L
Temperature Rating 1 – 15 bar, And More
Connection Size more on request -25°C to +65°C, more on request
Connections 4" to 20"
Vessel Closure Flange
Sealing Material TC Clamped, Bolted Silicon / Neoprene / EPDM / NBR / PTFE / Teflon / Viton
Lifting Device Davit Arm, Lifting Lug, Lifting Handle
Vessel Support Legs, Skirt, Saddle
Surface Finish Matt Finish, Mirror Finish, Paint
Optional Finish Electro Polish, Rubber/FRP Lining
Customized Design Available in customized design to accommodate specific requirements
Accessories (Optional) Pressure Gauge, Vent Valve, Drain Valve, D.P. Gauge
