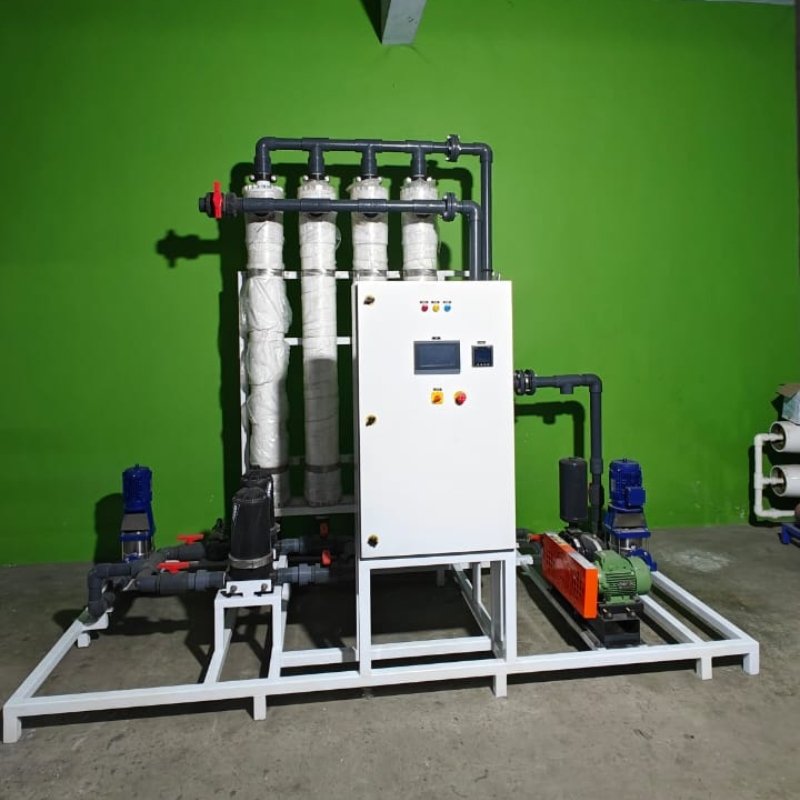

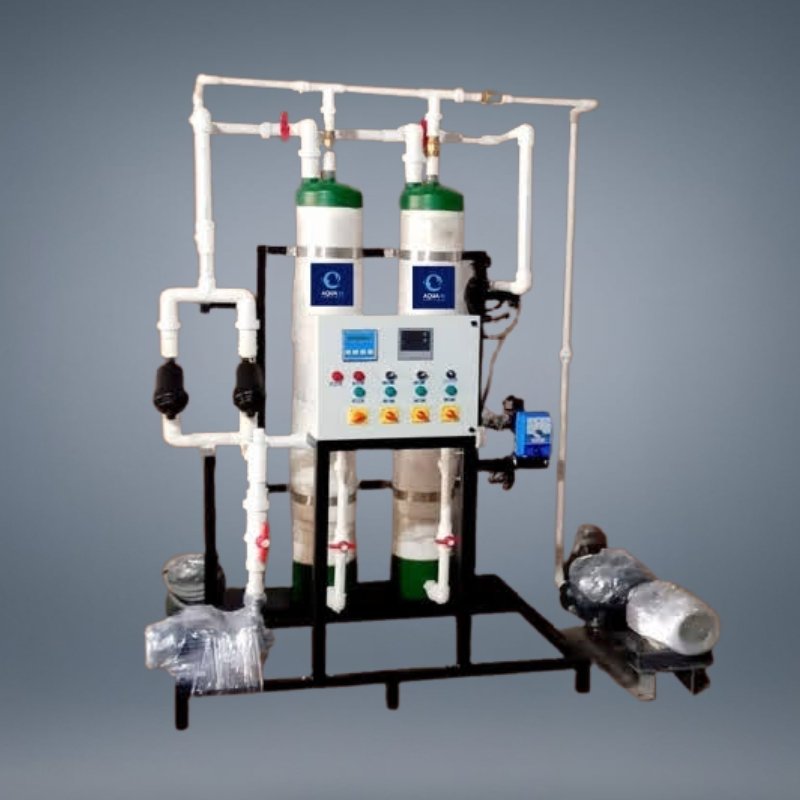

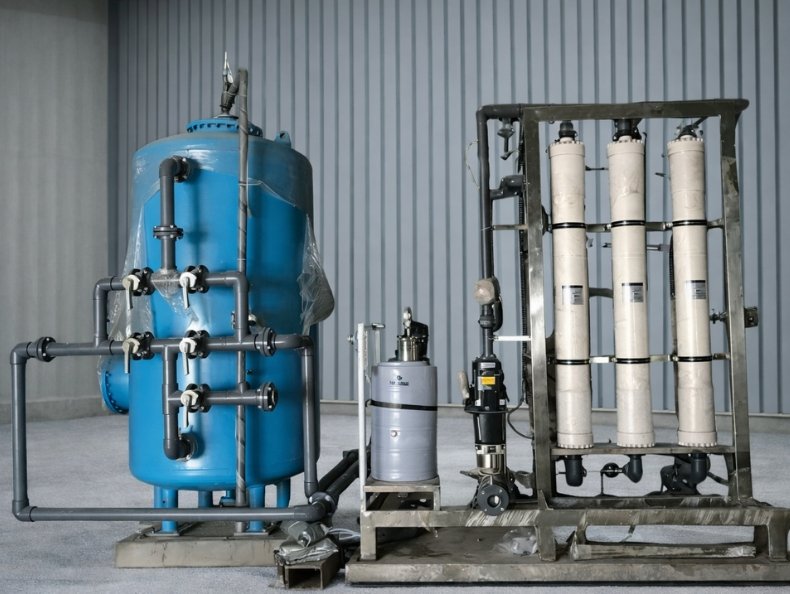

Ultra filtration Plant
ADVANCED ULTRAFILTRATION (UF) SYSTEMS
Aqua N water solution manufactures the most advanced Ultrafiltration (UF) systems for water treatment purposes that fit the needs of different industries and application such as chemical and pharmaceutical manufacturing, food and beverage processing, and waste water treatment…etc.
HOW ULTRAFILTRATION (UF) SYSTEMS WORK?
Ultrafiltration (UF) systems have diverse membrane filtrations where hydrostatic pressure pushes solvents against a very fine membrane. They block suspended particulates and solids that are large while water and solutes with a lower molecular weight are allowed to flow through the membrane.
To meet critical discharge criteria, ultra filtration systems remove the need for clarifiers and multimedia water Filtration Effective ultra filtration systems use membranes that can be immersed, back-flushable, and air scoured. Spiral wound UF/MF membranes offer excellent performance for the clarification of process water and waste water.
ULTRAFILTRATION (UF) SYSTEMS ADVANTAGES
- Superior filtration performance with high flux
- Very small nominal pore diameter (0.03 µm)
- Efficiently removes bacteria and viruses
- Occasionally back washed and air scoured to boost performance and remove the fouling layer, extending operating life
- Low fouling membrane modules
- UF Outside-In or Inside-Out configuration permits reduced plugging and higher solids loading
- Basic, vertical, modular design permits low-cost, compact systems
- Effective membrane cleaning with high chemical resistance and temperature tolerance
Applications
- Food & Beverage
- Pharmaceutical companies
- Pre & Post Treatment for RO Plant
- Dairy Product Concentration
- Cooling Tower make-up & blow down water treatment
- Drinking Water
- Water for Injection (WFI)
- Wastewater recycling
- Zero Liquid Discharge (ZLD) system
- Tertiary Treatment
- River Water Treatment
- Colloidal silica removal
- Heavy metal removal
| Technical Specification | |
|---|---|
| Flow | 1 m³/hr – 100 m³/hr |
| Inlet TSS | Max. 50 mg/L |
| Inlet Turbidity | Max. 100 NTU |
| Outlet Turbidity | < 1 NTU |
| Flux Rate | Varies from 20 LMH to 90 LMH |
| Temperature | 25° to 35° Celsius |
| Type of Membranes | Hollow fiber (Out to In) |
| MOC of Membranes | PVDF / PE / PAN / PS |
| Controls | Microprocessor / PLC |
| Flow Monitoring | Rotameter / Digital flow meters |
| Pre Filters | 100–50 Micron basket filter |
| UF Skid | MSEP / SS |
