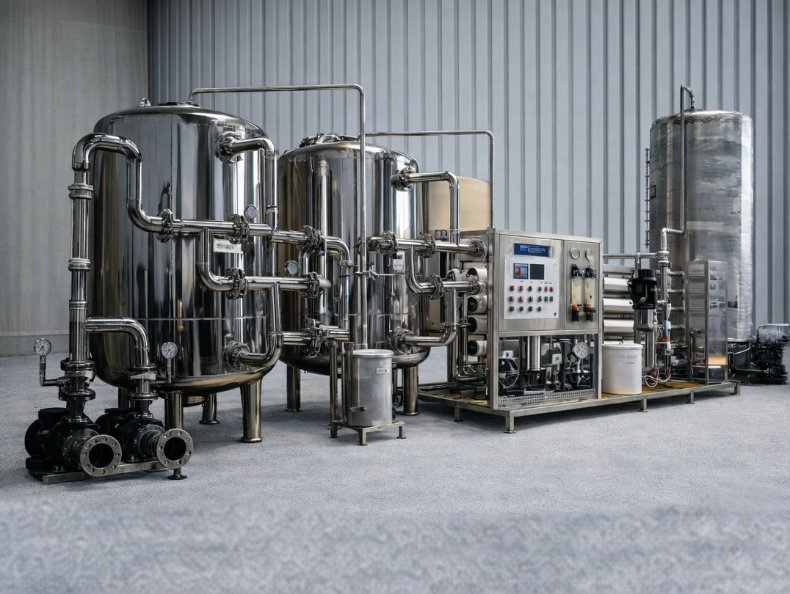

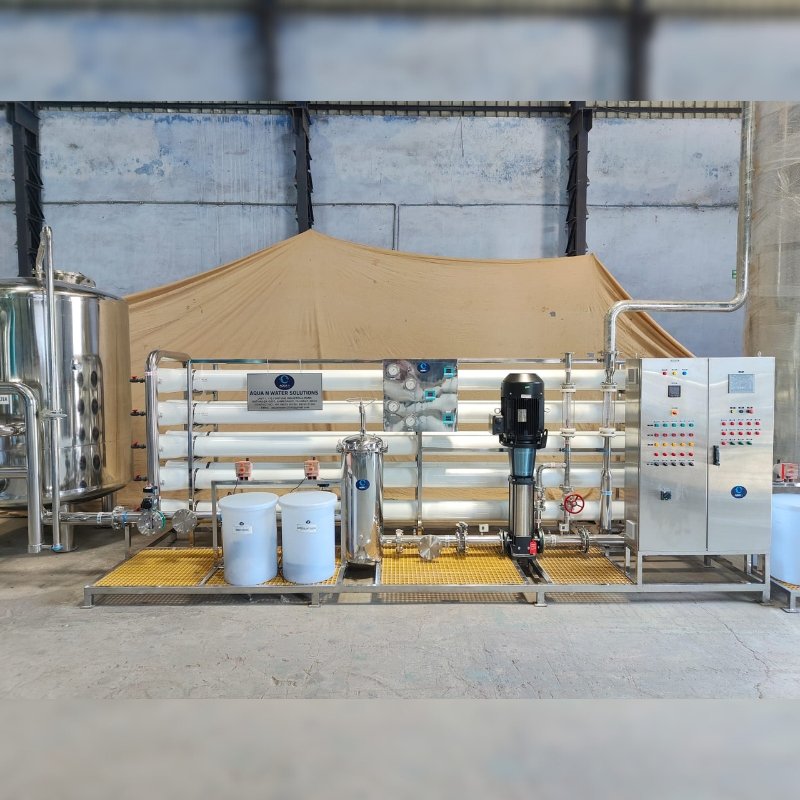

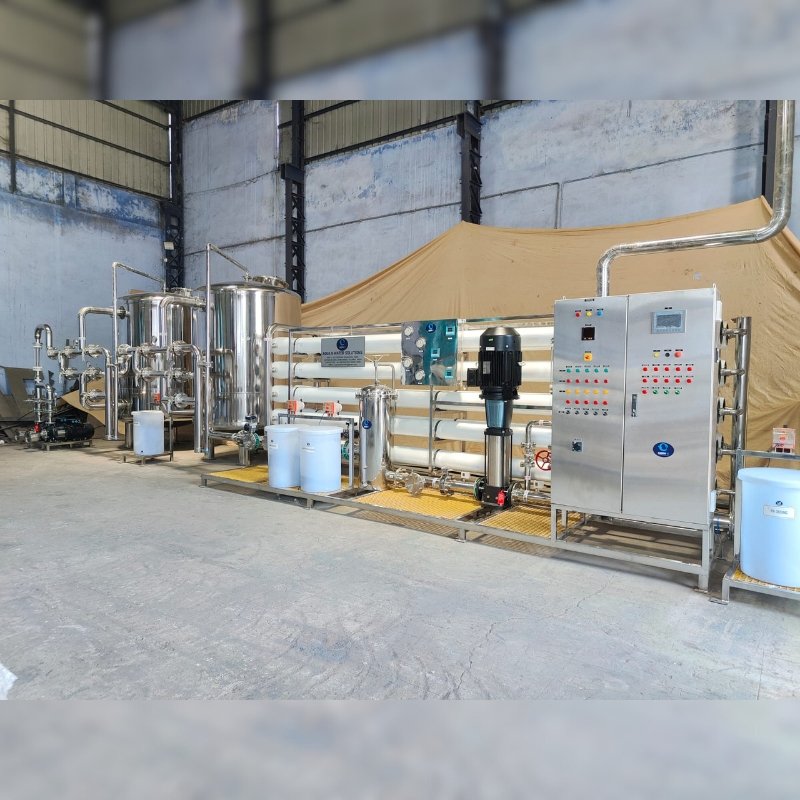

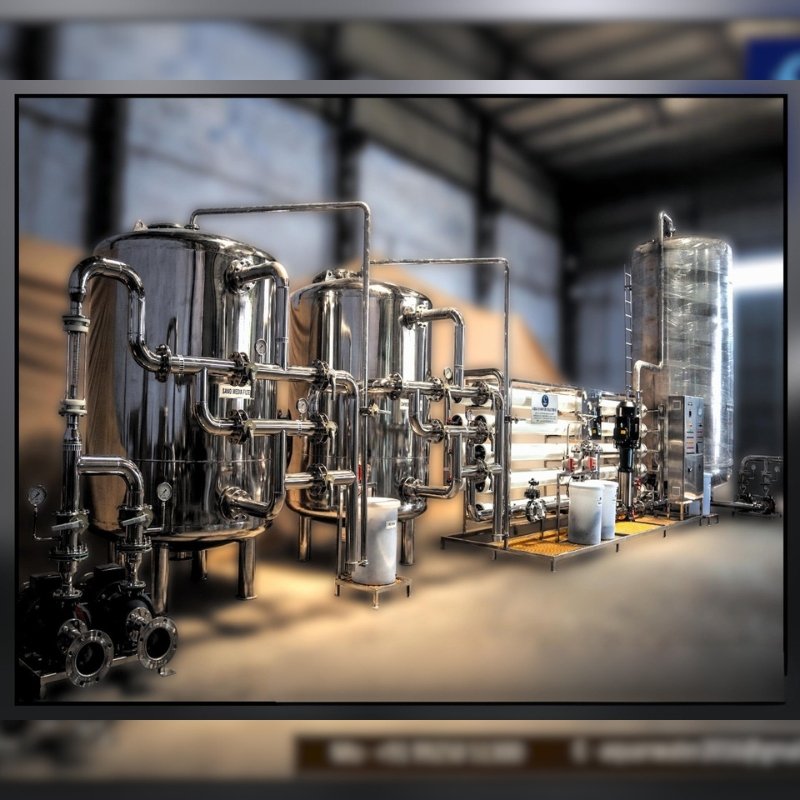

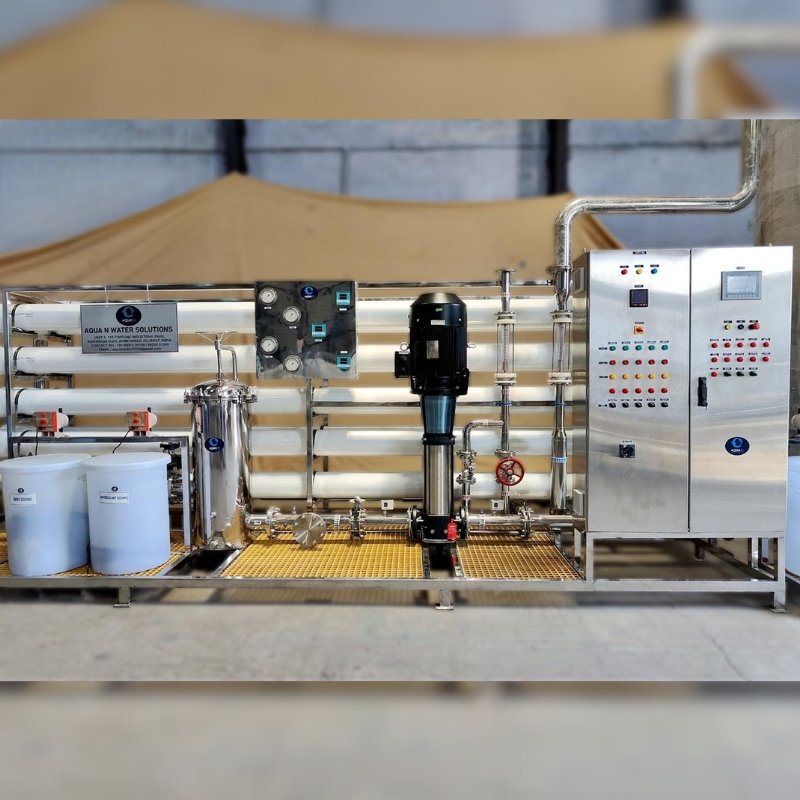

Beverages Water Plant – 45,000 LPH
The 45,000 LPH Beverages Water Plant is a high-efficiency water purification system designed for large-scale commercial and industrial beverage production. Built with a durable SS and MS structure, the system combines advanced Reverse Osmosis technology with UV disinfection to effectively remove dissolved salts, impurities, and harmful microorganisms.
Engineered for reliable performance and low maintenance, this system ensures continuous operation and long service life even in demanding production environments.
Key Features
- Capacity of 45,000 liters per hour
- Corrosion-resistant FRP and SS construction
- High-efficiency RO membranes for superior TDS removal
- Integrated UV system for microbial disinfection
- Multi-stage pre-filtration to protect membranes
- Skid-mounted design for easy installation
- Low operating and maintenance costs
- Consistent and reliable output water quality suitable for beverages
Applications
- Beverage production plants
- Soft drink and juice manufacturing units
- Food & beverage processing facilities
- Pharmaceutical and nutraceutical industries
- Bottled water production plants
- Hotels, resorts, and large catering units
- Process and utility water treatment in large-scale industries
| PRODUCT DESCRIPTION | 45000 L/H RO PLANT |
|---|---|
| RWP PUMP | FLOW 65 M3HR @ 30M HEAD 415 / 230 VOLT 50 Hz / 60 Hz |
| SAND MEDIA FILTER |
VESSEL SIZE: 1800 X 2000 MM SS 304/316 MIDEA: SAND, GRAVELS, SILEX |
| CARBON FILTER |
VESSEL SIZE 1800 X 2000 MM CONSTRUCTION SS 304/316 MIDEA: Iodine Number <1200 Apparent Density: 0.45 g/ml Moisture: 3% Particle size: 8 mesh * 30 mesh Steam Sterilization |
| MULTY PORT VALVE | Butterfly Valves SS 316 DISC |
| DOSING PUMP WITH TANK |
Dosing rate @ 4 kg/cm²: 5 Electrical 230 V AC, 50 Hz |
| MICRON CARTAGE FILTER | SS 304/316 – 2.5” X 40” DIA @5 MICRON |
| ELECTRIC PENAL | AUTO - WITH MCB RELAY OPERATED OR PLC HMI CONTROL |
| HPP PUMP | FLOW 65 M3HR @ 130 M HEAD 415 VOLT VOLTE - SS 304 |
| MEMBRANE |
JAPAN / USA SIZE 8040 - Membrane Area 400 ft² |
| PRESURTUBE | FRP / SS 304/316 - Dia 8” - 300 PSI |
| Desalination rate | 98.5% |
| SKID | BOX TYPE SS304 |
| PAPIP FITTING | SS 304/316 |
| UV DISINFECTION | SS 316-254 NM. 300J m² |
| PRODUCT WATER STORAGE TANK | SS 304/316 WITH SS TRANSFER PUMP |
| Water output | Design according to the actual site condition of the customer |
