Magnetic Filter Housing

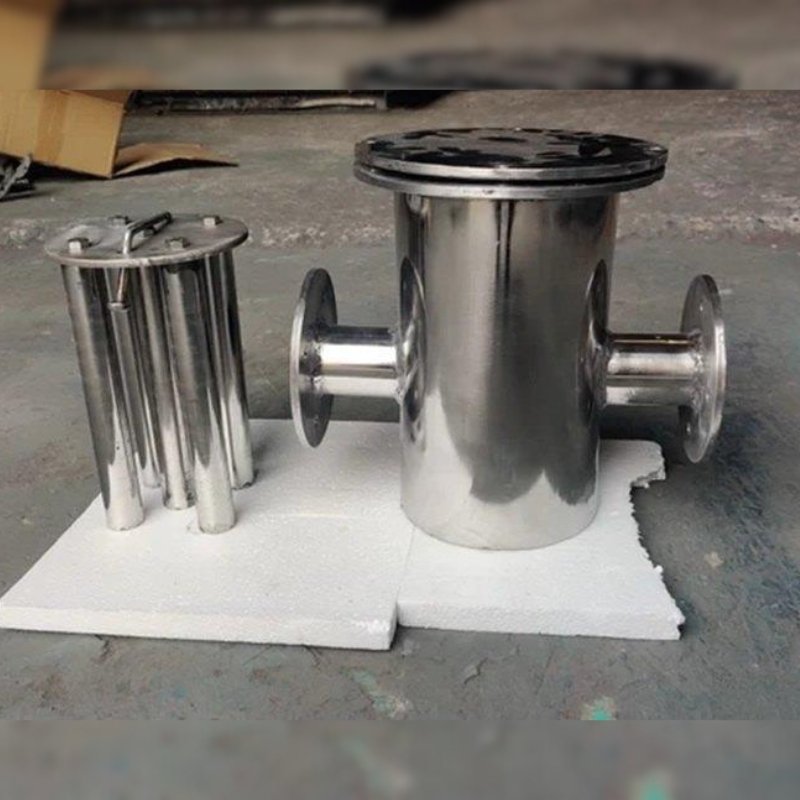

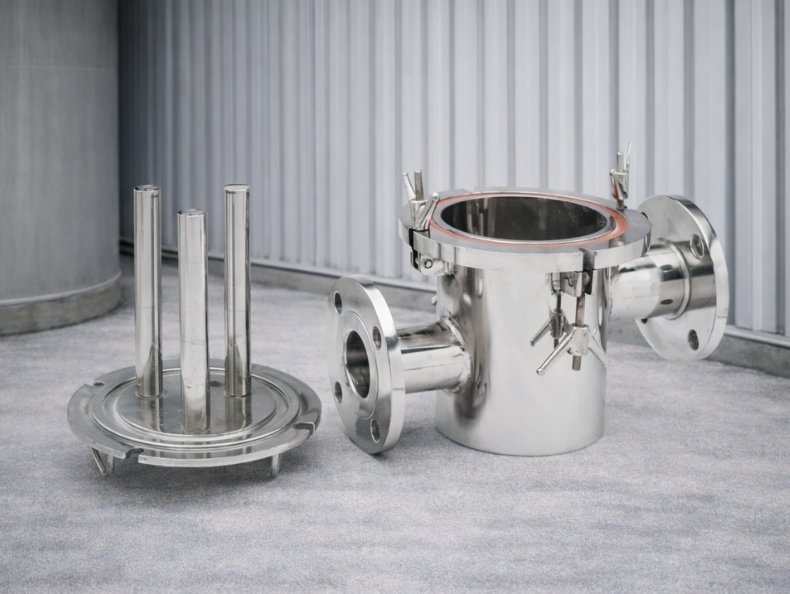

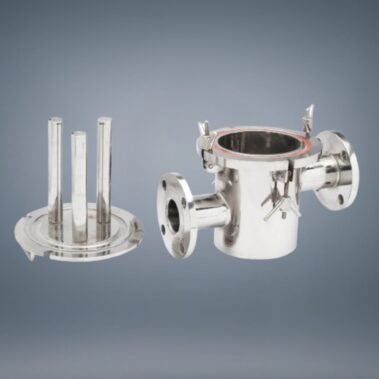

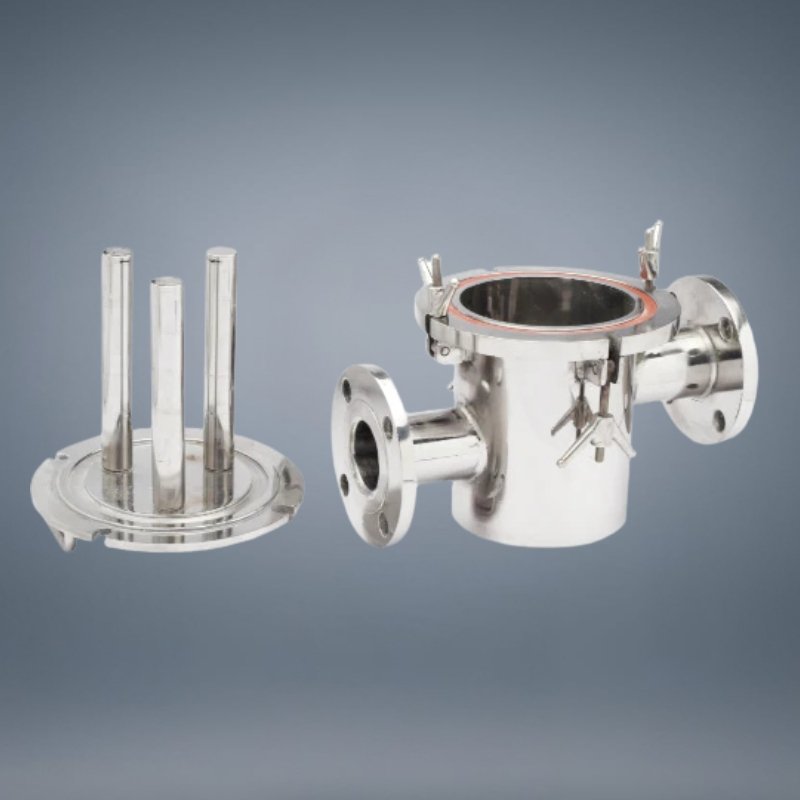

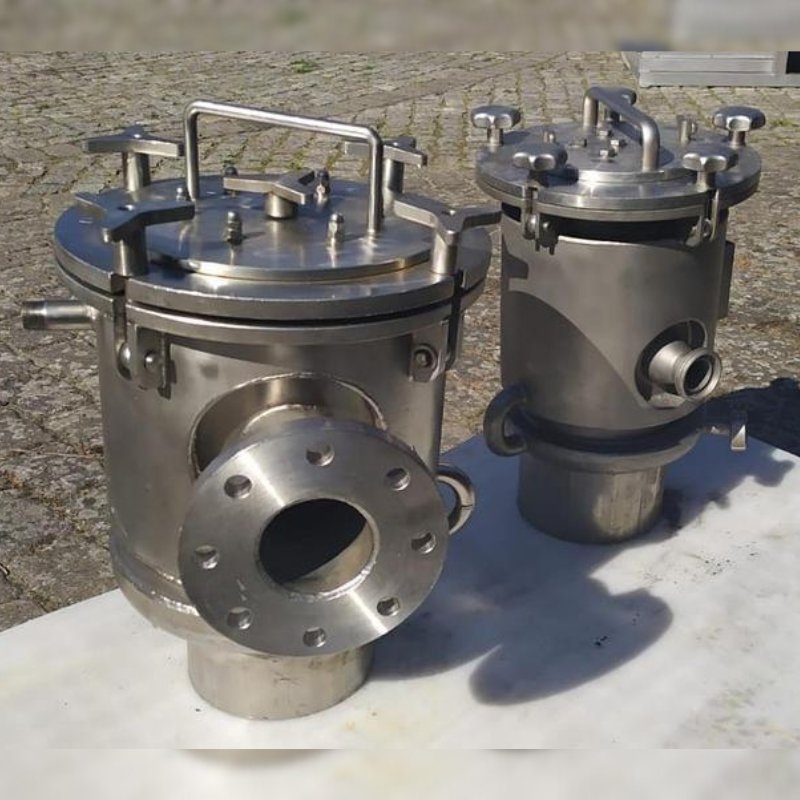

Magnetic Filter by Aqua N Solution is designed to remove sub-micron ferrous contamination such as iron particles and tungsten carbide from industrial fluids including coolants and oils. Effective removal of these contaminants increases fluid life and improves the surface finish of end products.

The filter uses permanent high-intensity magnets and does not require any consumables or external power to operate. Available in different sizes, it can also be customized as per customer requirements. The standard version is equipped with either three or five rare-earth Neodymium magnets delivering up to 12,500 Gauss magnetic strength.

null

Proven performance in demanding environments

Reliable performance in harsh industrial environments.

null

Low operating and maintenance costs

Optimized for efficient operation with low maintenance and reduced costs.

null

Custom-built solutions as per application needs

Designed to meet specific application needs for optimal performance.

null

Trusted quality and consistent results

Built with high-quality materials for dependable and consistent performance.

Key Features

  • Removes sub-micron ferrous and tungsten carbide contaminants
  • Uses permanent magnets with no consumables or power requirement
  • Available in various sizes with customization options
  • Standard design with three or five high-intensity Neodymium magnets
  • Magnetic performance up to 12,500 Gauss
  • Improves fluid life and product surface finish

Advantages

  • High flow capacity
  • Easy installation
  • Low operating and running cost
  • Zero pressure drop
  • Easy and low maintenance
  • High holding capacity of contaminants

Technical Data

Parameter Details
No. of Magnet 5 and more on request
Magnet Sizes Ø 27 mm x 490 mm long
Flow Rate Up to 500 LPM and more on request
Design Code ASME section VIII Division 1 or Good Engineering Practice
MOC SS 316 / SS 316L
Pressure Rating 1 – 10 bar, more on request
Temperature Rating -25°C to +80°C, more on request
Connection Size 1" – 6"
Connections TC Clamped & SMS Union Type
Vessel Closure TC Clamped, Flanged
Sealing Material Silicon / Neoprene / EPDM / NBR / PTFE / Teflon / Viton
Holding Capacity 6 kg
Vessel Support Legs
Surface Finish Matt finish, Mirror finish, Paint finish
Optional Finish Electro Polish
Customized Design Available in customized design to accommodate specific requirements
Accessories (Optional) High Intensity Magnetic Bar (12,000 Gauss)
