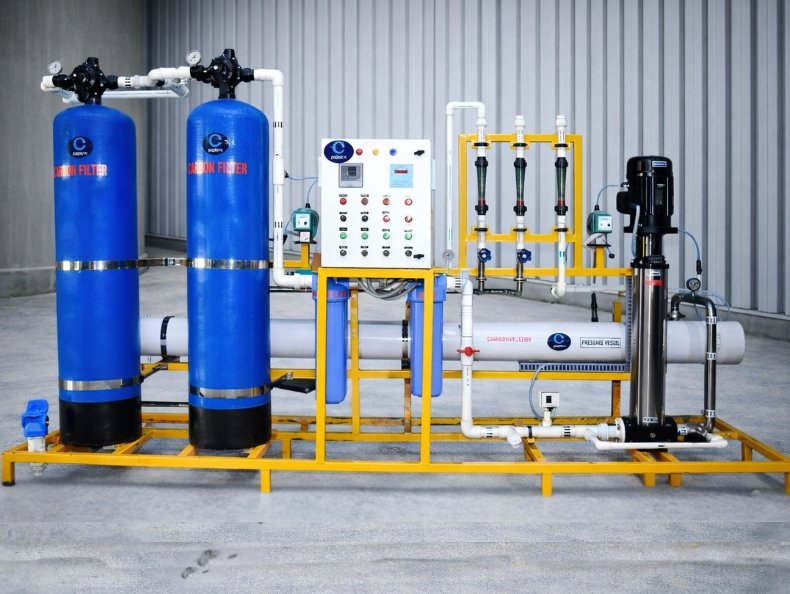

3000 LTR Water Treatment Plant
The 3000 LTR Water Treatment Plant is a high-capacity and efficient water purification system designed for commercial, industrial, and institutional applications that require a continuous supply of safe, clean, and treated water. Built with a robust SS and MS structure, the system utilizes advanced multi-stage filtration and treatment processes to effectively remove suspended solids, turbidity, contaminants, and harmful impurities.
Engineered for dependable performance and minimal maintenance, this plant ensures consistent water quality, reliable operation, and long service life even under demanding operating conditions.
Key Features
- Treatment capacity of 3000 liters
- Durable SS and MS structural construction
- Multi-stage filtration for effective impurity removal
- Advanced treatment process for improved water clarity
- Efficient removal of suspended solids and turbidity
- Compact skid-mounted design for easy installation
- Low operating and maintenance costs
- Consistent and reliable treated water output
Applications
- Commercial and industrial water treatment systems
- Residential societies and housing projects
- Hotels, resorts, and institutions
- Food & beverage processing units
- Hospitals and healthcare facilities
- Process and utility water treatment
- Pre-treatment for RO and softener plants
| PRODUCT DESCRIPTION | 3000 L/H RO PLANT | 3000 LPH SS 304 / 316 |
|---|---|---|
| RWP PUMP |
Flow 6 M³/Hr @ 30 m Head 415 / 230 Volt, 50 Hz / 60 Hz |
Flow 6 M³/Hr @ 30 m Head 415 / 230 Volt, 50 Hz / 60 Hz |
| SAND MEDIA FILTER |
Vessel Size: 450 × 1625 mm – FRP Media: Sand, Gravels, Silex |
Vessel Size: 450 × 1650 mm – SS 304 (Top Mounted MPV) Media: Sand, Gravels, Silex |
| CARBON FILTER |
Vessel Size: 450 × 1650 mm Media: 900 IV Coconut Based Carbon |
Vessel Size: 450 × 1650 mm – SS 304 (Top Mounted MPV) Media: Sand, Gravels, Silex |
| MULTI PORT VALVE | Size 1.5” – Top Mounted – 2 Nos | Size 1.5” – Top Mounted – 2 Nos |
| DOSING PUMP WITH TANK |
Dosing Rate @ 4 kg/cm² : 5 LPH Electrical: 230 V AC, 50 Hz |
Dosing Rate @ 4 kg/cm² : 5 LPH Electrical: 230 V AC, 50 Hz |
| MICRON CARTRIDGE FILTER | PP Housing – 4” × 20” DIA @ 5 Micron | SS 304 – 4” × 20” DIA @ 5 Micron |
| ELECTRIC PANEL | Auto – With MCB Relay Operated | Auto – With MCB Relay Operated |
| HPP PUMP |
Flow 6 M³/Hr @ 130 m Head 415 / 230 Volt – SS 304 |
Flow 6 M³/Hr @ 130 m Head 415 / 230 Volt – SS 304 |
| MEMBRANE |
Japan / USA Size 8040 – Membrane Area 400 ft² |
Japan / USA Size 8040 – Membrane Area 400 ft² |
| PRESSURE TUBE | Dia 8” – SS 304 – 300 PSI | Dia 8” – SS 304 – 300 PSI |
| DESALINATION RATE | 98% | 98% |
| SKID | Box Type MS – Powder Quoted | Box Type SS 304 |
| PIPING & FITTINGS | UPVC | SS 304 / 316 |
