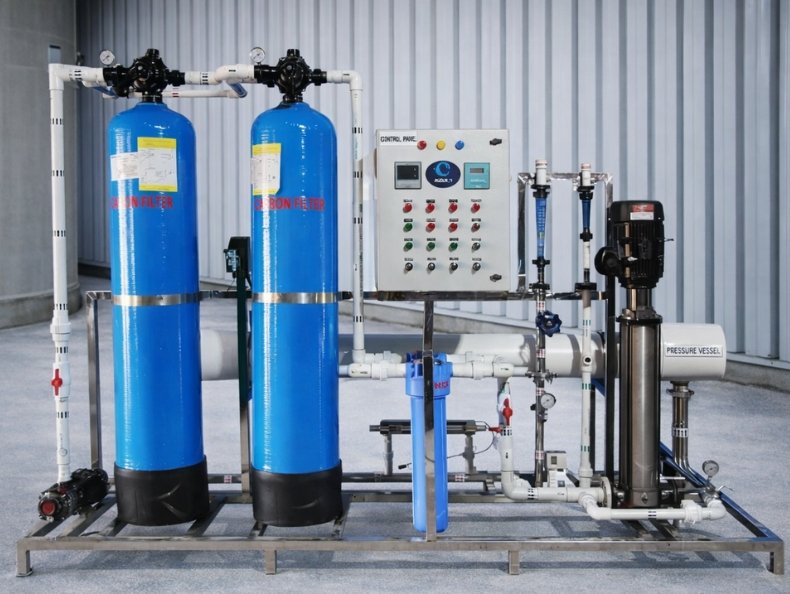

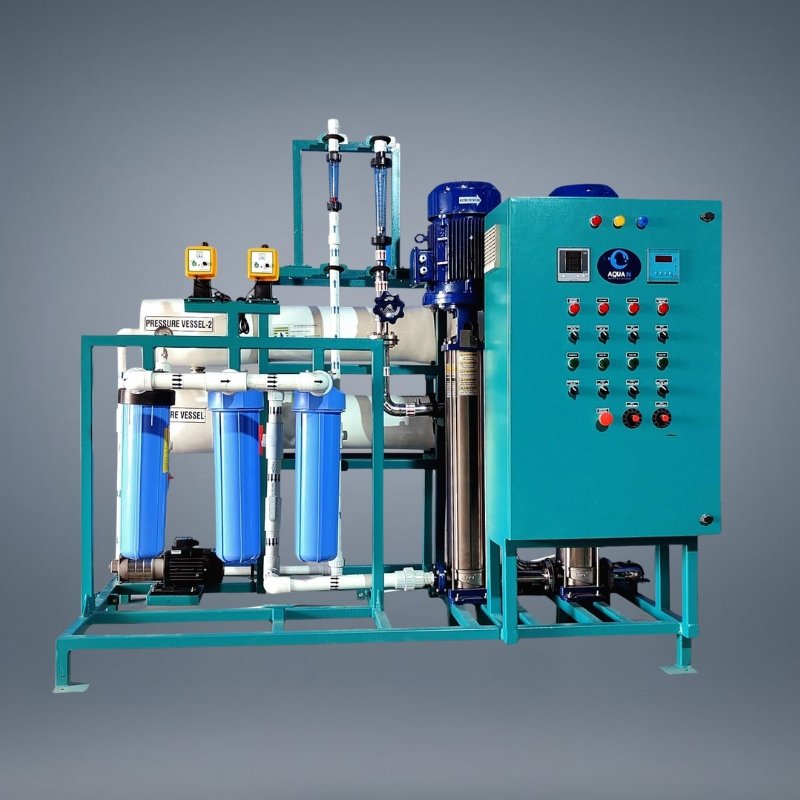

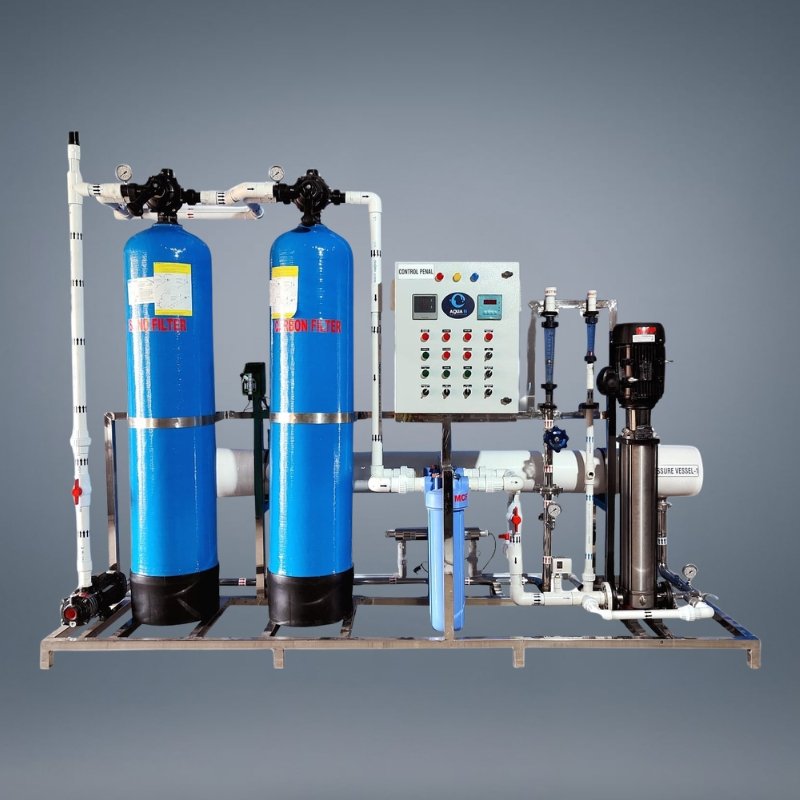

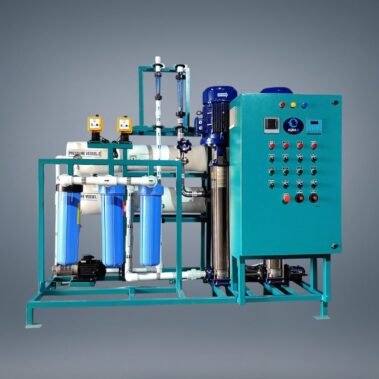

2000 LPH FRP RO Plant with UV + GAC Technology
The 2000 LPH FRP RO + UV + GAC Plant is a high-capacity water purification system designed for large commercial and industrial applications that demand continuous, safe, and superior-quality water. Constructed with a robust and corrosion-resistant FRP structure, this system integrates advanced Reverse Osmosis technology with UV disinfection and Granular Activated Carbon (GAC) filtration to effectively remove dissolved salts, organic contaminants, chlorine, odors, and harmful microorganisms.
Engineered for high performance, durability, and low maintenance, the system ensures uninterrupted operation and consistent water quality even under heavy usage and demanding conditions.
Key Features
- Capacity of 2000 liters per hour
- Heavy-duty corrosion-resistant FRP construction
- High-rejection RO membranes for efficient TDS reduction
- Integrated UV system for effective microbial disinfection
- GAC filtration for removal of chlorine, odor, and organic impurities
- Multi-stage pre-treatment to enhance membrane life
- Skid-mounted compact design for easy installation
- Low operating and maintenance costs
- Consistent, high-quality purified water output
Applications
- Large commercial water treatment systems
- Hospitals and healthcare institutions
- Pharmaceutical and biotechnology industries
- Food & beverage processing plants
- Hotels, resorts, and large restaurants
- Educational institutions and campuses
- Industrial process and utility water treatment
| Product Description | 2000 L/H RO Plant | 2000 LPH SS 304 / 316 |
|---|---|---|
| RWP Pump | 415 / 230 Volt, 50 Hz / 60 Hz | 415 / 230 Volt, 50 Hz / 60 Hz |
| Sand Media Filter |
Vessel Size: 350 × 1625 mm – FRP Media: Sand, Gravels, Silex |
Vessel Size: 350 × 1625 mm – SS 304 (Top Mounted MPV) Media: Sand, Gravels, Silex |
| Carbon Filter |
Vessel Size: 325 × 1350 mm Media: 900 IV Coconut Based Carbon |
Vessel Size: 325 × 1350 mm – SS 304 (Top Mounted MPV) Media: Sand, Gravels, Silex |
| Multi Port Valve | Size 1.5” – Top Mounted – 2 Nos | Size 1.5” – Top Mounted – 2 Nos |
| Dosing Pump with Tank |
Dosing Rate @ 4 kg/cm² : 5 LPH Electrical: 230 V AC, 50 Hz |
Dosing Rate @ 4 kg/cm² : 5 LPH Electrical: 230 V AC, 50 Hz |
| Micron Cartridge Filter | PP Housing – 4” × 20” DIA @ 5 Micron | SS 304 – 4” × 20” DIA @ 5 Micron |
| Electric Panel | Auto – With MCB Relay Operated | Auto – With MCB Relay Operated |
| HPP Pump |
Flow 4 m³/hr @ 130 m Head 415 / 230 Volt – SS 304 |
Flow 4 m³/hr @ 130 m Head 415 / 230 Volt – SS 304 |
| Membrane | Japan / USA – Size 8040 (Area 400 ft²) | Japan / USA – Size 8040 (Area 400 ft²) |
| Pressure Tube | Dia 8” – SS 304 – 300 PSI | Dia 8” – SS 304 – 300 PSI |
| Desalination Rate | 98% | 98% |
