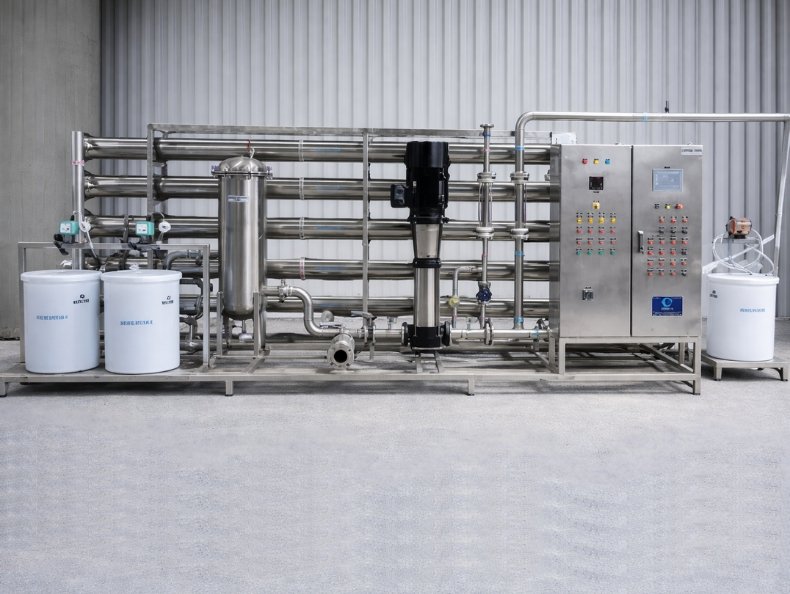

Beverages Water Plant – 10000 LPH
The 10000 LPH Beverages Water Plant is a high-capacity and advanced water treatment solution specially designed to meet the stringent quality requirements of the beverage industry. Built with a robust SS and MS structure, this system integrates advanced Reverse Osmosis technology along with specialized filtration stages to ensure crystal-clear, safe, and taste-neutral water suitable for beverage production.
Engineered for continuous operation and consistent performance, the plant effectively removes dissolved salts, chlorine, organic impurities, odor, taste issues, and harmful microorganisms, ensuring compliance with food and beverage quality standards while maintaining low operating and maintenance costs.
Key Features
- Capacity of 10000 liters per hour
- Food-grade SS and MS construction for beverage applications
- High-efficiency RO membranes for superior TDS reduction
- Advanced multi-stage filtration for taste and odor control
- Chlorine and organic contaminant removal system
- Skid-mounted compact design for easy installation
- Energy-efficient operation with low maintenance requirements
- Consistent and reliable high-quality output water
Applications
- Beverage manufacturing plants
- Soft drink and juice production units
- Packaged drinking water plants
- Dairy and food processing industries
- Bottling and canning facilities
- Industrial process water for beverages
- Large-scale commercial water treatment systems
| PRODUCT DESCRIPTION | 10000 L/H RO PLANT |
|---|---|
| RWP PUMP |
FLOW 20 M3/HR @ 30M HEAD 415 / 230 VOLT 50 Hz / 60 Hz |
| SAND MEDIA FILTER |
VESSEL SIZE : 1200 × 1800 MM – FRP MEDIA : SAND, GRAVELS, SILEX |
| CARBON FILTER |
VESSEL SIZE : 1200 × 1800 MM MEDIA : 900 IV COCONUT BASED CARBON |
| MULTY PORT VALVE | SIZE 2.5” – SIDE MOUNTED – 2 NOS |
| DOSING PUMP WITH TANK |
Dosing rate @ 4 kg/cm² : 5 LPH Electrical 230 V AC, 50 Hz |
| MICRON CARTAGE FILTER | PP HOUSING – 2.5” × 40” DIA @ 5 MICRON |
| ELECTRIC PANEL | AUTO – WITH MCB RELAY OPERATED |
| HPP PUMP |
FLOW 20 M3/HR @ 250M HEAD 415 VOLT – SS 304 |
| MEMBRANE |
JAPAN / USA SIZE 8040 – Membrane Area 400 ft² |
| PRESURE TUBE | FRP Dia 8” – 600 PSI / 1000 PSI |
| DESALINATION RATE | 98% |
| SKID | BOX TYPE MS POWDER COATED |
| PIPING FITTING | UPVC |
