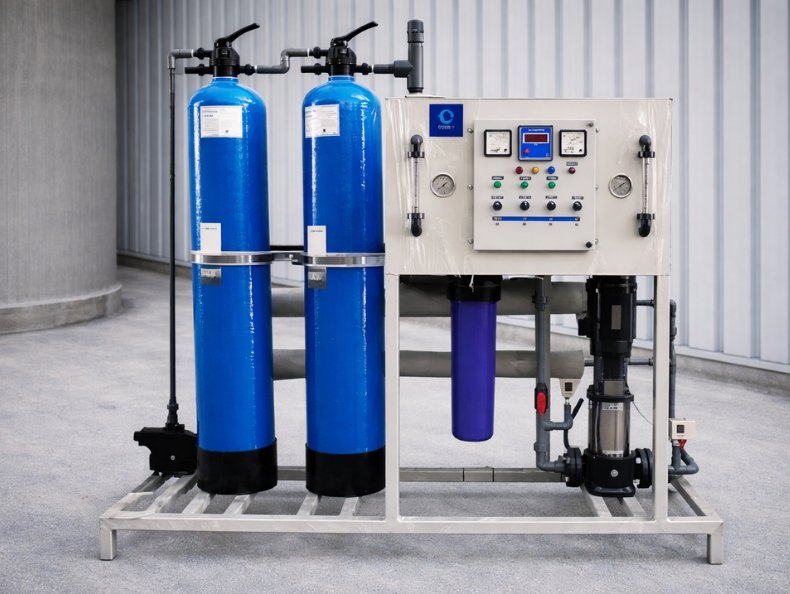

500 LPH RO Plant with UV
The 500 LPH RO + UV Plant is a high-efficiency water purification system designed for commercial and industrial applications requiring consistent, safe, and high-quality water. Built with a durable SS and MS structure, the system combines advanced Reverse Osmosis technology with UV disinfection to effectively remove dissolved salts, impurities, and harmful microorganisms.
Engineered for reliable performance and low maintenance, this system ensures continuous operation and long service life even in demanding environments.
Key Features
- Capacity of 500 liters per hour
- Corrosion-resistant FRP construction
- High-efficiency RO membranes for superior TDS removal
- Integrated UV system for microbial disinfection
- Multi-stage pre-filtration to protect membranes
- Compact skid-mounted design for easy installation
- Low operating and maintenance costs
- Consistent and reliable output water quality
Applications
- Commercial water treatment systems
- Hospitals and healthcare facilities
- Laboratories and research centers
- Food & beverage processing units
- Pharmaceutical industries
- Hotels, restaurants, and institutions
- Process and utility water treatment
| PRODUCT DESCRIPTION | 500 LPH FRP RO PLANT | 500 LPH SS 304/316 RO PLANT |
|---|---|---|
| RWP_PUMP | 230 VOLT 50 Hz / 60 Hz | 230 VOLT 50 Hz / 60 Hz |
| SAND MEDIA FILTER | VESSEL SIZE :300 X 1300MM -FRP MIDEA : SAND, GRAVELS, SILEX |
VESSEL SIZE :300 X1300MM -SS 304 TOPMUNTED MVP MIDEA : SAND, GRAVELS, SILEX |
| CARBON FILTER | VESSEL SIZE 325/1350MM MIDEA : 900IV COCONUT BES CAEBON |
VESSEL SIZE :325/1350MM -SS 304 TOPMUNTED MVP MIDEA : SAND, GRAVELS, SILEX |
| DOSING PUMP WITH TANK | Dosing rate @ 4 kg/cm²: 5 Electrical 230 V AC, 50 Hz. | Dosing rate @ 4 kg/cm²: 5 LPH Electrical 230 V AC, 50 Hz. |
| MICRON CARTAGE FILTER | PP HOUSING – 4"X20" DIA @5MICRON | SS 304 – 4"X20" DIA @5MICRON |
| ELECTRIC PENAL | AUTO -WITH MCB RELAY OPRATED | AUTO -WITH MCB RELAY OPRATED |
| HPP_PUMP | 415 VOLT /230 VOLTE -SS 304 | 415 VOLT /230 VOLTE -SS 304 |
| MEMBERANE | JAPAN / USA (SIZE 40"X40") | JAPAN / USA (SIZE 40"X40") |
| PRESURTUBE | 300 PSI - 40x40 | SS 304, 300 PSI – 40"x40" |
| SKID | BOX TYPE MS Powder Quoted | BOX TYPE SS 304 |
| PAPIP FITTING - | UPVC | SS 304/316 |
| UV DISINFECTION | SS 304-254 NM.160J m2 | SS 304-254 NM.160J m2 |
| MULTY PORT VALVE | Top Mounted 2 Nos | Top Mounted 2 Nos |
