Bag Filter Housing

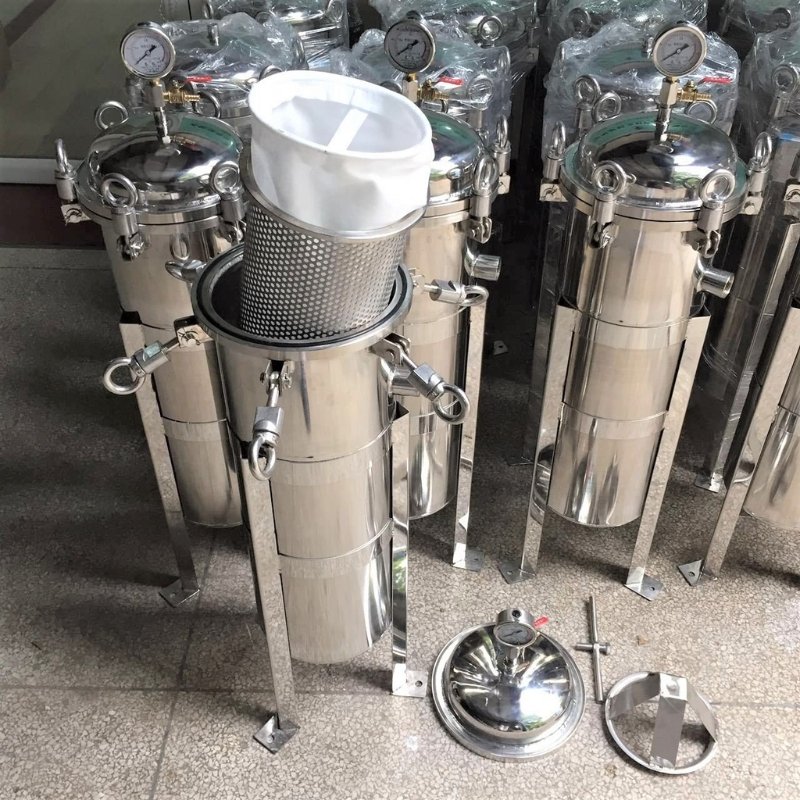

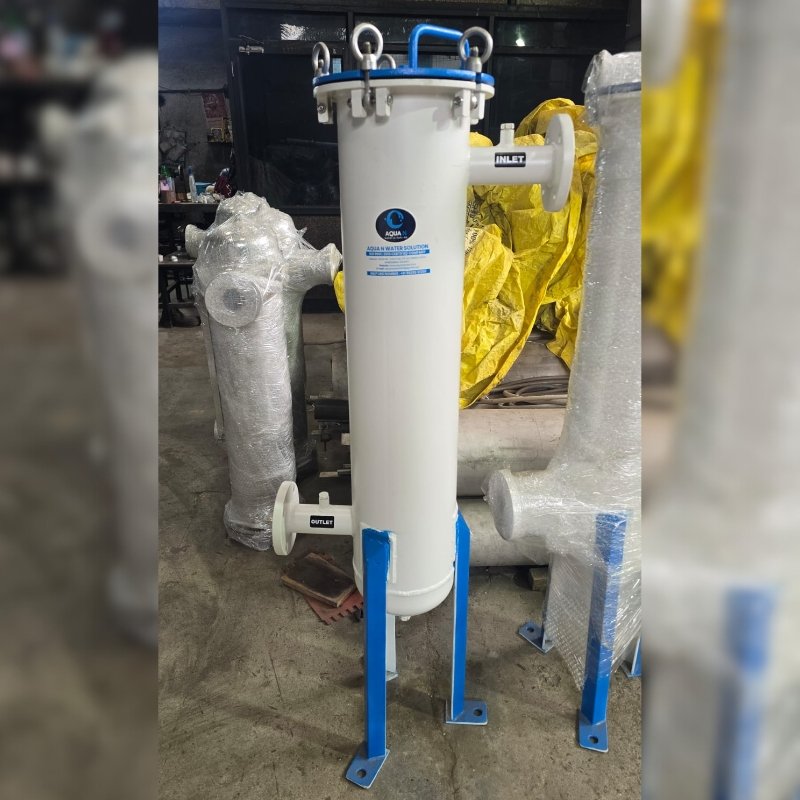

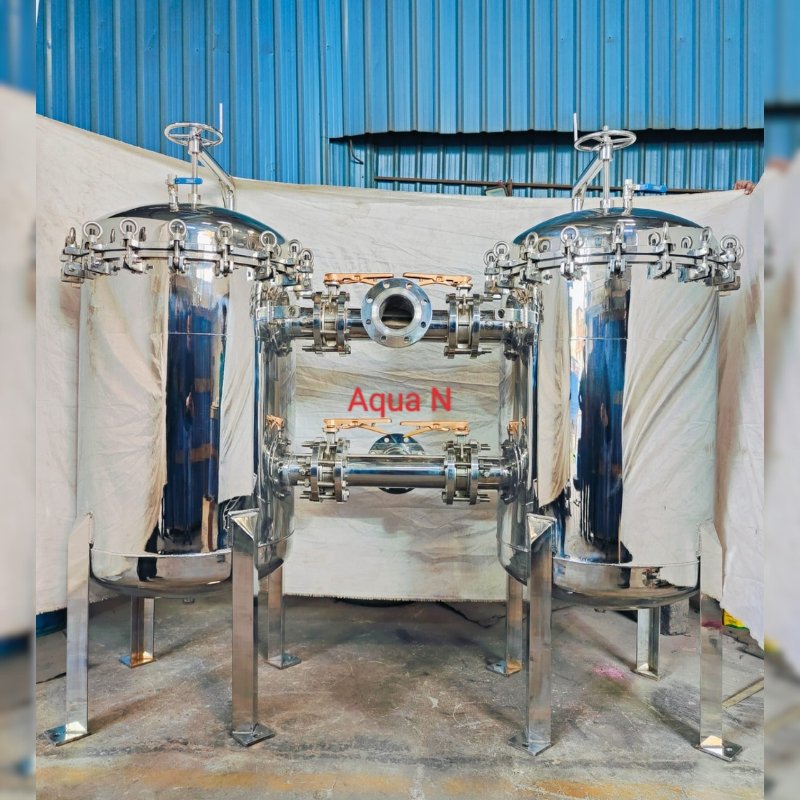

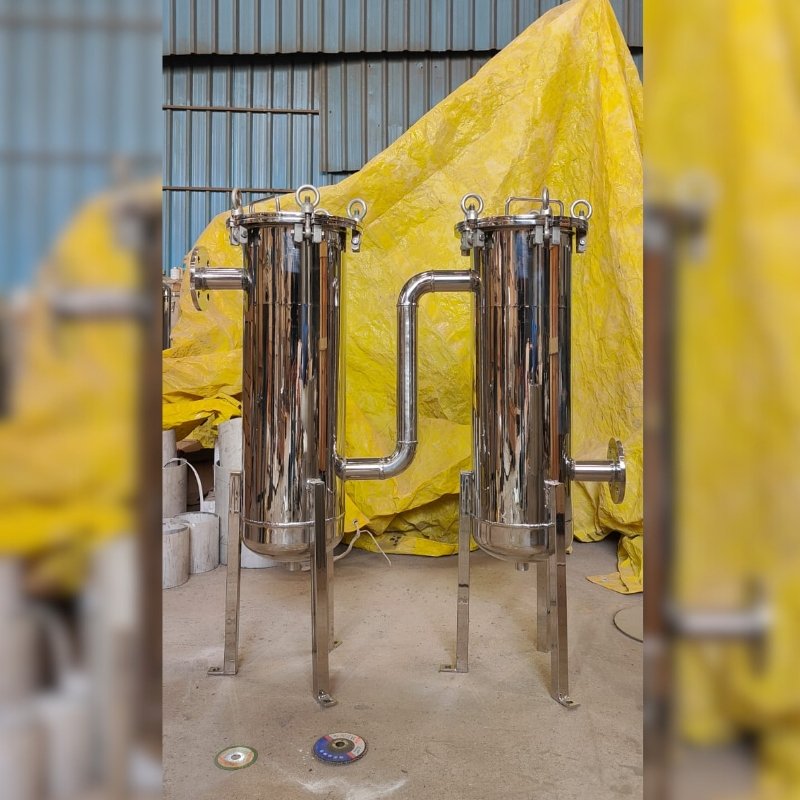

Bag Filter Housing is designed for efficient filtration in high-flow industrial applications where low pressure drop and reliable contaminant removal are essential. Available in both Single Bag Filter and Multi Bag Filter configurations, it ensures consistent performance with easy operation and minimal maintenance.

The system features a compression sealing arrangement to prevent bypassing, ensuring complete filtration and process safety. Its quick and simple bag changeover design reduces downtime, while robust construction guarantees long service life in demanding operating conditions.

null

Proven performance in demanding environments

Reliable performance in harsh industrial environments.

null

Low operating and maintenance costs

Optimized for efficient operation with low maintenance and reduced costs.

null

Custom-built solutions as per application needs

Designed to meet specific application needs for optimal performance.

null

Trusted quality and consistent results

Built with high-quality materials for dependable and consistent performance.

Key Features

  • Available in single bag and multi bag filter options
  • High flow rate with minimal pressure drop
  • Compression sealing arrangement to avoid bypassing
  • Easy to operate with low maintenance requirements
  • Quick and simple bag changeover
  • Multiple connection options for inlet, outlet, vent, and drain
  • O-ring sealed covers for leak-proof operation
  • Various surface finish options available for both internal and external surfaces

Applications

  • Processing chemicals
  • Petroleum derivatives
  • Coolants and cutting oils
  • Cleaning fluids
  • Vegetable and edible oils
  • Polymers, paints, inks, and resins
  • Pharmaceuticals
  • Sugar syrup processing

Technical Data

Parameter Details
Flow Rate Up to 40 m³/hr and More on Request
MOC Carbon Steel, Mild Steel, Duplex 2205, SS 304/304L, SS 316/316L
Pressure Rating 1 – 5 bar, more on request
Temperature -25°C to +65°C, more on request
Connection Size 1¼” – 6”
Connections Flange, Socket
Vessel Closure Bolted, Eye Bolt & Wing Nut Type, TC Clamped
Sealing Material Silicon / Neoprene / EPDM / NBR / PTFE / Teflon / Viton
Vessel Support Legs Fixed With Base Plates
Surface Finish Matt Finish, Blast Finish(Paint Finish), Mirror Finish
Customized Design Available in customized design to accommodate specific requirements
Accessories (Optional) Pressure Gauge, Vent Valve, Drain Valve, Differential Pressure Transmitters
