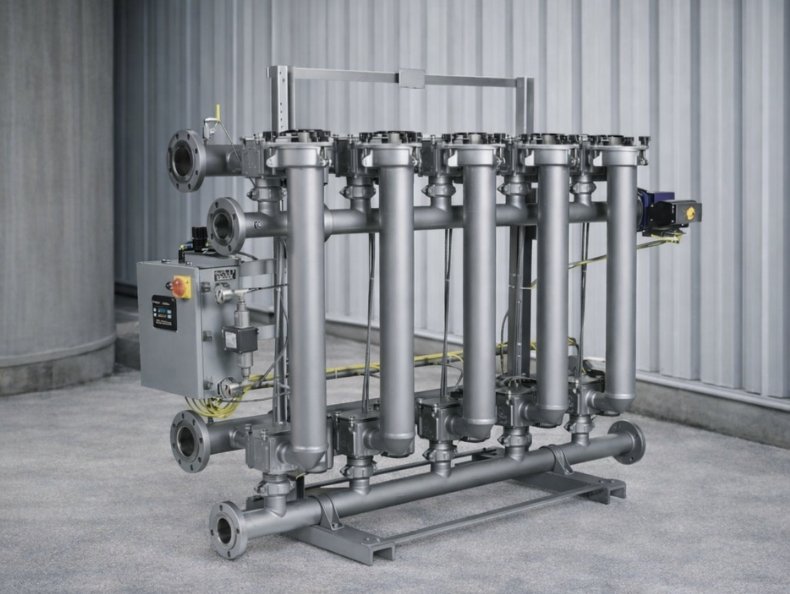

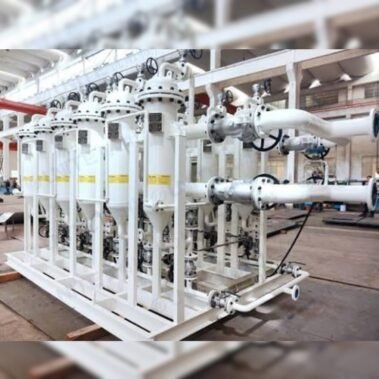

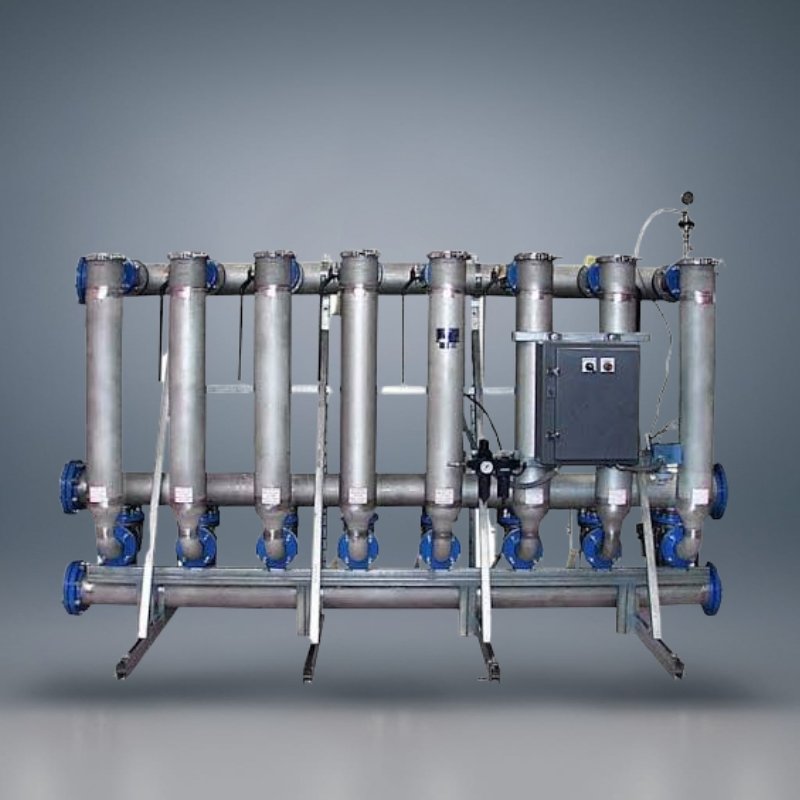

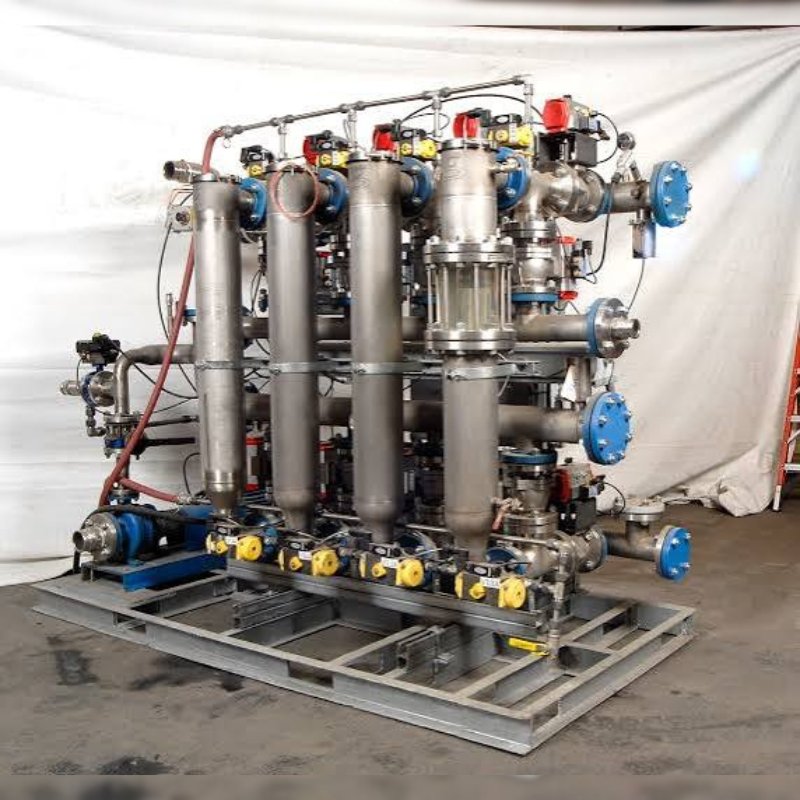

Tubular Backwashing Filter System

Tubular Backwashing Filter System is designed for liquid filtration applications requiring unattended operation, maximum uptime, and efficient removal of suspended solids ranging from 1 to 1,700 microns. The F-Series family of filter systems delivers reliable performance with continuous filtration and automatic backwashing.

Its modular and versatile design allows future capacity expansion and configuration flexibility. Smooth pipe and nozzle connection transitions minimize pressure drop and eliminate dead spots, while advanced backwashing technology ensures thorough media cleaning without interrupting downstream flow.

null

Proven performance in demanding environments

Reliable performance in harsh industrial environments.

null

Low operating and maintenance costs

Optimized for efficient operation with low maintenance and reduced costs.

null

Custom-built solutions as per application needs

Designed to meet specific application needs for optimal performance.

null

Trusted quality and consistent results

Built with high-quality materials for dependable and consistent performance.

Key Features

  • Designed for unattended operation with maximum system uptime
  • Removes solids ranging from 1 to 1,700 microns
  • Modular design for future capacity and configuration flexibility
  • Single system flow rates up to 3,000 GPM (681 m³/hr)
  • Smooth pipe and nozzle transitions to minimize pressure drop
  • Wide selection of filter media materials and retention ratings
  • Proprietary 3-way full-ported valves for effective backwashing
  • Isolated top-to-bottom backwash flow for complete media cleaning
  • Multiple automated backwash options for operator-free service
  • Minimal backwash effluent consumption (<2% of system volume)

Applications

  • City water lines
  • Hot condensate
  • Chiller water systems
  • Fresh water filtration
  • Whitewater / shower water
  • CIP fluids
  • Papermaking wet end starch
  • Pelletizer water
  • Single and duo tubular filters for high-pressure and high-viscosity applications up to 1000 psi

Technical Data

Parameter Details
Flow Rate Up to 681 m³/hr, More on request
MOC Carbon Steel, Mild Steel, Duplex 2205, SS 304/304L, SS 316/316L
Pressure Rating 1 – 15 bar
Temperature Rating -25°C to +65°C, more on request
Connection Size Change Pending ¾” – 14”
Connections Flange, Socket
Vessel Closure Bolted, Eye Bolt & Wing Nut Type, TC Clamped
Sealing Silicon / Neoprene / EPDM / NBR / PTFE / Teflon / Viton
Vessel Support Base Skid Mounting Type
Surface Finish Matt Finish, Mirror Finish, Paint Finish
Customized Design Available in customized design to accommodate specific requirements
Accessories (Optional) Control Panel with HMI Display, Vent Valve, Drain Valve, Different Pressure
Transmitter Control Panel, 3 Way Ball Valve (Electrically Operated)
