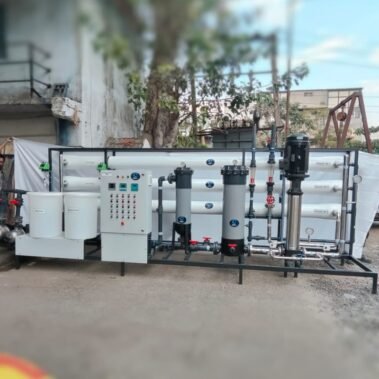

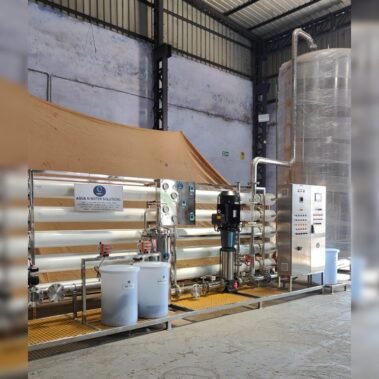

8000 LPH REVERES OSMOSIS PLANT

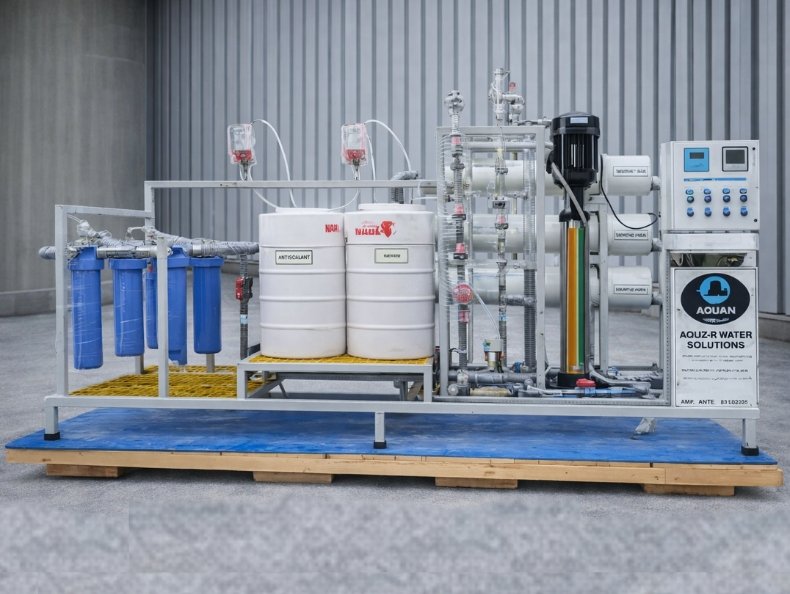

The 8000 LPH RO + UV + GAC Plant is a high-capacity and high-performance water purification system designed for large commercial and industrial applications requiring uninterrupted supply of safe, hygienic, and high-quality water. Built with a strong and durable SS and MS structure, this advanced system integrates Reverse Osmosis technology with UV disinfection and Granular Activated Carbon (GAC) filtration to effectively remove dissolved salts, chlorine, organic contaminants, odor, taste, and harmful microorganisms.
Engineered for continuous and reliable operation, the system offers superior efficiency, long service life, and reduced operational costs even in demanding and high-load environments.
Key Features
- Capacity of 8000 liters per hour
- Heavy-duty SS and MS structural construction
- High-efficiency RO membranes for excellent TDS reduction
- Integrated UV disinfection system for microbial safety
- GAC filtration for effective removal of chlorine, odor, and organic impurities
- Advanced multi-stage pre-filtration to protect RO membranes
- Skid-mounted compact design for easy installation and maintenance
- Energy-efficient operation with low maintenance requirements
- Consistent and reliable high-quality purified water output
Applications
- Large-scale commercial water treatment plants
- Hospitals and healthcare institutions
- Food & beverage processing industries
- Pharmaceutical and chemical manufacturing units
- Hotels, resorts, and large institutional facilities
- Industrial process and utility water treatment
- Packaged drinking water and municipal water treatment systems
| PRODUCT DESCRIPTION | 8000 L/H RO PLANT |
|---|---|
| RWP PUMP |
FLOW 16 M3/HR @ 30M HEAD 415 / 230 VOLT 50 Hz / 60 Hz |
| SAND MEDIA FILTER |
VESSEL SIZE : 900 × 1800 MM – FRP MEDIA : SAND, GRAVELS, SILEX |
| CARBON FILTER |
VESSEL SIZE : 900 × 1800 MM MEDIA : 900 IV COCONUT BASED CARBON |
| MULTY PORT VALVE | SIZE 2.5” – SIDE MOUNTED – 2 NOS |
| DOSING PUMP WITH TANK |
Dosing rate @ 4 kg/cm² : 5 LPH Electrical 230 V AC, 50 Hz |
| MICRON CARTAGE FILTER | PP HOUSING – 2.5” × 30” DIA @ 5 MICRON |
| ELECTRIC PANEL | AUTO – WITH MCB RELAY OPERATED |
| HPP PUMP |
FLOW 12 M3/HR @ 130M HEAD 415 / 230 VOLT – SS 304 |
| MEMBRANE |
JAPAN / USA SIZE 8040 – Membrane Area 400 ft² |
| PRESURE TUBE | Dia 8” – SS 304 – 300 PSI |
| DESALINATION RATE | 98% |
| SKID | BOX TYPE MS POWDER COATED |
| PIPING FITTING | UPVC |
| UV DISINFECTION | SS 304 – 254 NM – 160 J/m² |
| WATER OUTPUT | Design according to the actual situation of the customer |
